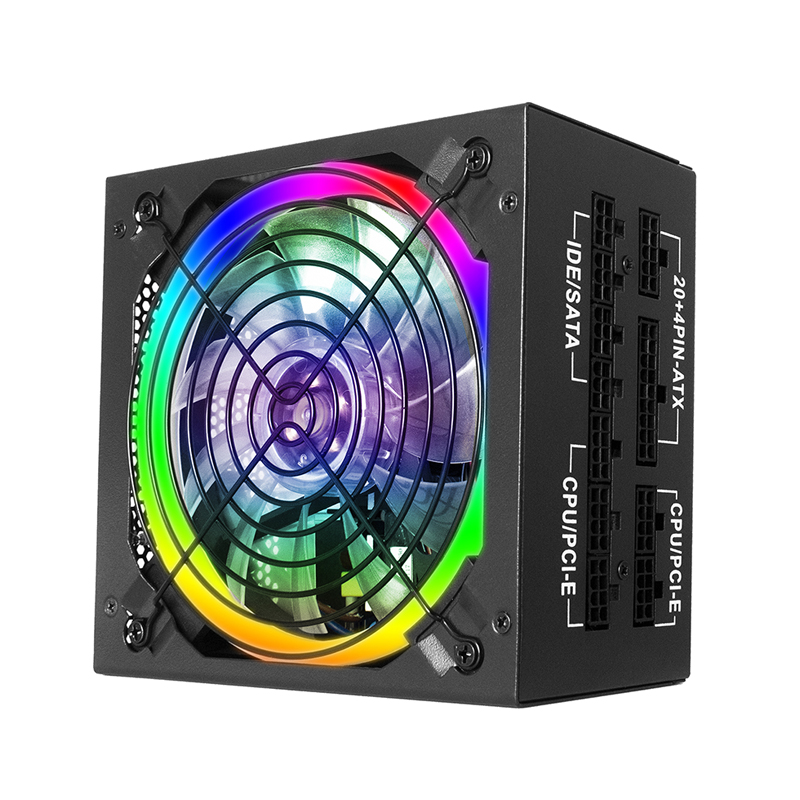

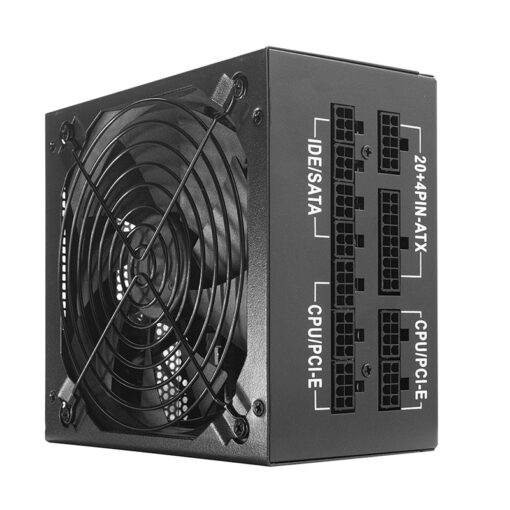

Model No.:ATX1000W 900W 800W 700W
Full Modular 80plus Gloden Wholesales PSU OEM/ODM ATX 1000W 900W 800W 700W Computer Power Supply For PC 80 Plus Bronze gaming
- Cable management design
- Complies with Intel ATX12V V2.3 & EPS12V V2.92
- Certified by 80 PLUS® Bronze
- Active PFC (PF>0.99)
- Extreme silence with intelligent-thermal fan control technology
- Supports SLI & Crossfire Multi-GPU VGA cards
- Supports Intel & AMD Dual Core CPUs and Multi Core CPUs
- Supports PCs, IPCs, work stations and servers
- Strict voltage regulation (±3%) provides stable voltage for system
- The standby mode consumes less than 1W when +5VSB is less than 1A.
- Six +12V rails provide superior system performance
- Advanced phase-shifting control full-bridge brings high reliability & efficiency
- Multiple protection functions: OCP, OVP, UVP, OPP & SCP
- 100% Burn-In tested & 100% Hi-Pot tested
- MTBF: 100KHrs
| Voltage | 100-240VAC | |||||||||
| Output 700W | Voltage | +3.3V | +5V | +12V1 | +12V2 | +12V3 | +12V4 | +12V5 | -12V | +5VSB |
| Max. Load | 24.0A | 32.0A | 16.0A | 16.0A | 16.0A | 18.0A | 18.0A | 0.5A | 3.0A | |
| Min. Load | 0.8A | 0.5A | 0.0A | 0.0A | 0.9A | 0.1A | 0.0A | 0.0A | 0.1A | |
| Regulation | ±5% | ±5% | ±3% | ±3% | ±3% | ±3% | ±3% | ±10% | ±3% | |
| Ripple & Noise | 50mV | 50mV | 120mV | 120mV | 120mV | 120mV | 120mV | 120mV | 50mV | |
| Dimension | 150 x 86 x 160mm (W x H x L), 14cm fan | |||||||||
| PFC | APFC | |||||||||
